FM2032-51 Micro Soldering Iron (Handpiece)
SKU: HFM2032-51
Availability:
Low stock – Order soon
FM-2032 works with your Hakko high end stations FX951, FM203 or FM206.
Fine tip and slim heater ensure your sophisticated soldering for precise components on high density PWB under microscope.
N2 Soldering is possible with option parts.
£67.21 Excl. VAT
Low stock – Order soon
Perform delicate soldering with your soldering station.
Connect any of the three stations below.
The high power 48W heater is capable even to multilayer PWB with excellent thermal recovery.
 |  |  |
HAKKO FM-206 |

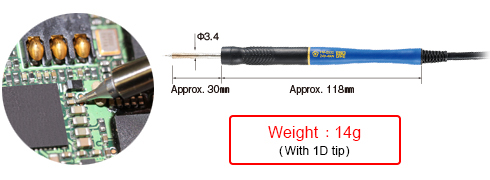

Ideal for micro-soldering applications under a microscope
HAKKO’s slim and light-weight soldering iron sustains a high level of visibility.
Optional parts make it compatible with N2 system.
Optional parts, “Hose assembly” and appropriate “Nozzle assembly” for the tip, make FM-2032 compatible with N2 system.
Heated N2 gas contributes to “improvement of solderbility”, “prevention of tip oxidation”, and “preheating effect” during micro soldering.
| Part No. | Nozzle top outer diameter/ Nozzle length | Soldering tips | |
| Nozzle assembly A | C5038 |  | T30-D1, T30-D06, T30-I , T30-KU |
| Nozzle assembly B | C5039 |  | T30-KN |
| Nozzle assembly C | C5040 |  | T30-J |
| Nozzle assembly D | C5041 |  | T30 Series soldering tips * Shorter nozzle design provides compatibility with all the T30 Series soldering tips and better visibility. |
N2 System reduces soldering defects
Work efficiency improved for minute and high-density components
Dedicated tips employ composite heater inside which has enough track records in the market. Now you can solder minute and high-density components which used to be difficult previously.

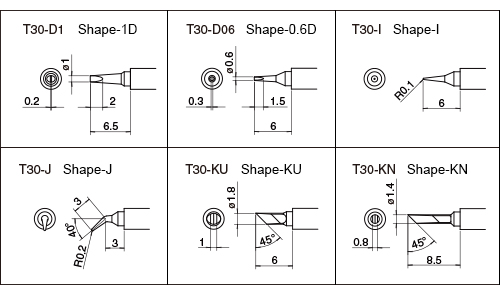

Tips designed especially for HAKKO FM-2032 – T30 Series

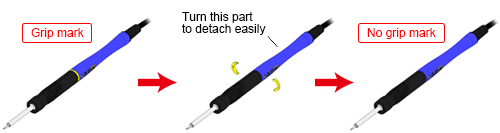

Grip mark can be attached/detached as desired.
Attach a grip mark for lead-free soldering or remove it for eutectic soldering.
How you use it is up to you.
Grip marks are convenient for identifying soldering tips which are difficult to recognize at a glance.
FM2032 Handpiece ONLY
A soldering tip is NOT included with this product. The desired tips should be purchased separately. FM2032 can work only when it is connected to applicable stations. HAKKO FX-951 HAKKO FM-203 HAKKO FM-206 |
Specifications
| Model No. | FM2032-51 | FM2032-52 |
|---|---|---|
| Power consumption | 48W (24V) | |
| Temperature range | 200 to 450ºC | |
| Tip to ground resistance | <2Ω | |
| Tip to ground potential | <2mV | |
| Heating element | Composite heater | |
| Cord length | 1.3m | |
| Total length | 170mm (with 1D tip) | |
| Weight | 14g (with 1D tip) | |
* Total length and weight (w/o cord)
Soldering Tip / Nozzle
For the HAKKO FM-2032, soldering iron tips are not supplied as accessories. Please separately purchase "T30 Series" soldering iron tips.
"Nozzle assembly" and "Hose assembly" are necessary for FM-2032 to use N2 system.
"Nozzle assembly D" with its shorter nozzle design provides compatibility with all the T30 Series soldering tips and better visibility. Click here for details.
T30 Series
Shape D
Shape I
Shape J
Replacement Parts
| Part No. | Name | Specifications | ||||
|---|---|---|---|---|---|---|
 | FM2032-52 | HAKKO FM-2032 conversion kit | Buy Now | |||
 | FM2032-51 | Soldering iron FM-2032 | Buy Now | |||
 | B5001 | Handle mark (qty 2) | Buy Now | |||
 | FH200-81 | Iron holder <w/ cleaning sponge> | with power-save function | Buy Now | ||
 | B5000 | Iron receptacle | with retaining clip & screw | Buy Now | ||
 | B2791 | Retaining clip | Buy Now | |||
 | A1519 | Cleaning sponge | yellow | Buy Now | ||
 | A1536 | Cleaning sponge * Discontinued. The replacement is "A1519". | green | |||
 | B3253 | Connecting cable | Buy Now | |||
 | B2300 | Heat resistant pad | Buy Now | |||
| ||||||
Option
| Part No. | Name | Specifications | ||
|---|---|---|---|---|
 | C5038 | Nozzle assembly A | for Shape-0.6D, 1D, I or KU of T30 series | Buy Now |
 | C5039 | Nozzle assembly B | for Shape-KN of T30 series | Buy Now |
 | C5040 | Nozzle assembly C | for Shape-J of T30 series | Buy Now |
 | C5041 | Nozzle assembly D | for all soldering tips of T30 series | Buy Now |
 | B5178 | Hose assembly | with cord holderb (qty 5) | Buy Now |
 | 599B | HAKKO 599B tip cleaner | Buy Now |
| Category | Title |
|---|---|
| How to use | Select Tip Shape |
| Maintenance | Why is the measured tip temperature lower than the set temperature |
| Maintenance | Tip life |
| Maintenance | Why do tips oxidize easily when they are used with lead-free solder |
| Top Tips | Top Tips for Successful Soldering and De-Soldering Processes |
| Weight | 0.092 kg |
|---|
