FX8804 Hot SMD Tweezers

SKU: HFX8804-02


In stock

Hot tweezers designed exclusively for HAKKO FX-888D, FX-889, FR-701 and FR-702
FX-8804 enables the easy removal of SMD chips and flat packages of up to 25mm
The iron holder clip allows accurate positioning of the tip

£148.72 Excl. VAT

In stock

A minimum sub total of £250.00 is required, You need an additional £250.00 to proceed through to the checkout.

For customers in the Republic of Ireland, please contact us for a quote including shipping and customs charges.

Request quote

SMD hot tweezer

Can be used with your existing HAKKO FX-888(*Discontinued), HAKKO FX-888D, HAKKO FX-889, HAKKO FR-701 or HAKKO FR-702 soldering station.

Direct heating-less influence upon surrounding components on crowded boards.

Easily removes SMD chips and flat packages up to 25mm.

The collet allows easy replacement and alignment of the tip.


Model No.


Power consumption

65W (26V)

Temperature range

200 to 400°C

Tip to ground resistance


Tip to ground potential


Heating elementCeramic heater
Standard tipShape-2L (No.A1378)2 pcs/set
Cord length1.2m
Total length186mm (with Chip 2L tip)
Weight93g (with Chip 2L tip)

* Total length and weight (w/o cord)
* The recommended (process) temperature is from 200°C to 400°C while setting temperature range of FX-888D is from 50°C to 480°C.

1. FX8803 SMD Hot Tweezers
2. Standard tip: A1378 (Chip 2L)
3, Heat Resitant Pad B2300

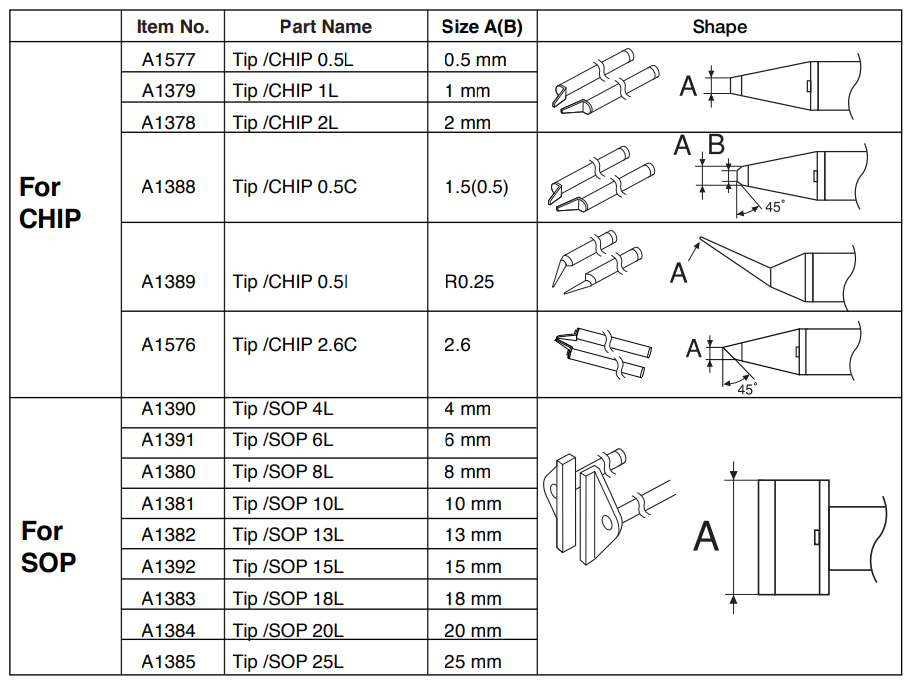

Part NumberDescription
A1577A1577 Tip CHIP 0.5L 0.5mmBuy Now
A1379A1379 Tip CHIP 1L 1mmBuy Now
A1378A1378 Tip CHIP 2L 2mmBuy Now
A1388A1388 Tip CHIP 0.5C 1.5mmBuy Now
A1389A1389 Tip CHIP 0.5I R0.25mmBuy Now
A1576A1576 Tip CHIP 2.6C 2.6mmBuy Now
A1390A1390 Tip SOP 4L 4mmBuy Now
A1391A1391 Tip SOP 6L 6mmBuy Now
A1380A1380 Tip SOP 8L 8mmBuy Now
A1381A1381 Tip SOP 10L 10mmBuy Now
A1382A1382 Tip SOP 13L 13mmBuy Now
A1392A1392 Tip SOP 15L 15mmBuy Now
A1383A1383 Tip SOP 18L 18mmBuy Now
A1384A1384 Tip SOP 20L 20mmBuy Now
A1385A1385 Tip SOP 25L 25mmBuy Now

Recommended / Optional Extras

FH800-04 Iron Holder for FX8804 – Blue/yellowFH800-04-BY Blue Iron HolderBuy Now
FH800-04 Iron Holder for FX8804 - SilverFH800-04-SV Silver Iron HolderBuy Now
FX8805 Soldering Iron and TipFX8805 Soldering IronBuy Now
FG-100B Digital ThermometerFG-100B Digital ThermometerBuy Now
C1390C Omnivise PCB HolderC1390CBuy Now
FA-400 Desktop Fume ExtractorFA-400 Desk Top Fume ExtractorBuy Now
B3474 Rubber Tip Cleaner for FX888 & FX888DB3474 Rubber Tip CleanerBuy Now

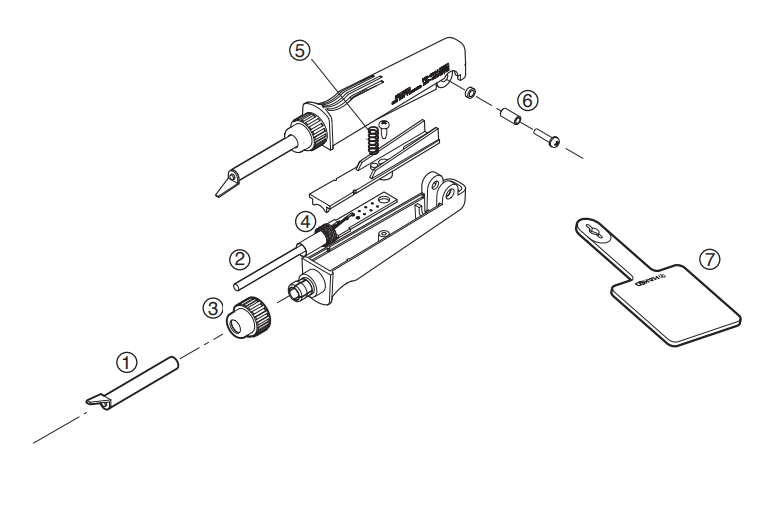

FX8804 Spare Parts

Image Part NumberDescription
1.tipTipSee Tip Tab
2.A1578 Heating Element for FX-8804A1578Heating ElementBuy Now
3.B2289 NippleB2289NippleBuy Now
4.B2290 TerminalB2290TerminalBuy Now
5.B2295 Tension SpringB2295Tension SpringBuy Now
6.B2296 Strut PinB2296Strut PinBuy Now
7.B2300 Heat Resistant PadB2300Heat Resistant PadBuy Now

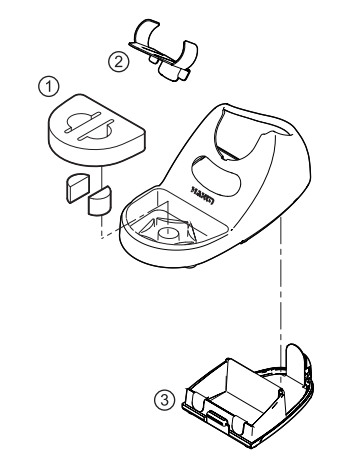

FH200 Iron Holder Spare Parts

Part NumberDescription
FH800-04 Iron Holder for FX8804 – Blue/yellow


FH800-04-BY Blue Iron HolderBuy Now
FH800-04 Iron Holder for FX8804 - SilverFH800-04-SVFH800-04-SV Silver Iron HolderBuy Now
1.A1559 Sponge for FX-888 & FX888DA1559Cleaning SpongeBuy Now
2.B3666 Iron Holder Clip for FH800-04B3666Holder ClipBuy Now
3.B3751 FH800 Bottom Plate and FeetB3751Bottom PlateBuy Now
